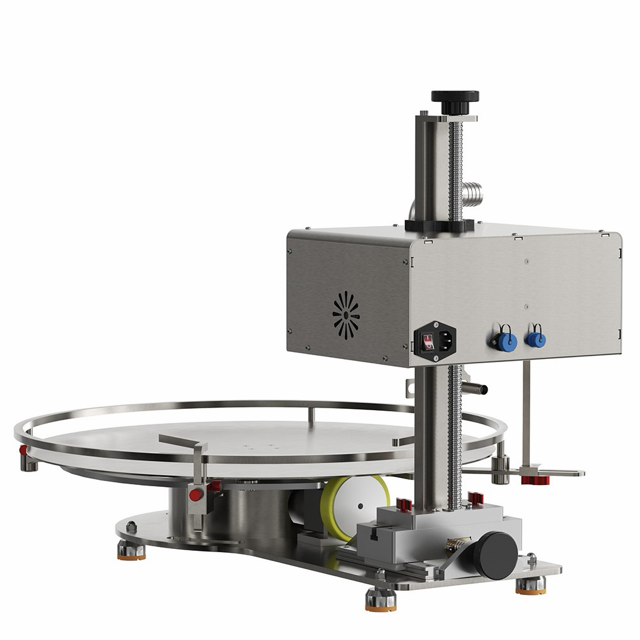

Fully Automatic Bottling Machine
£2,750.00
The Small Rotating Disc Type Filling Machine offers smart automation. With a touch screen display, operators can easily set parameters. This user-friendly design saves time and reduces mistakes during production.
In addition, this honey bottling machine uses infrared sensing technology. Bottles are automatically detected, and the turntable works with the filling system. This hands-free process reduces labour and increases efficiency.
Both the turntable speed and filling speed are adjustable. As a result, the machine adapts to different production needs, from small-scale bottling to larger batches.
With a minimum filling volume of 5g, it is ideal for sample jars, promotional packs, and specialty honey products.
The machine works with any standing container. Producers do not need multiple machines, which saves investment and provides flexibility for diverse markets.
The pump head includes a quick adapter. It can work with funnel or extraction methods, making the machine more versatile in different production settings.
Cleaning is fast and simple. The gear pump is equipped with hand-tightening bolts, allowing easy disassembly. This feature reduces downtime and ensures food safety.
Its rotating table has a 650mm diameter and a load capacity of 50kg. With adjustable speed from 0–3 r/min, it supports different bottle sizes and weights.
The pump delivers a flow rate of 10L/min and supports suction up to 1.5m. This ensures continuous and stable operation, even in long production runs.
Both machines are made from durable and hygienic materials. They are built for long-term use, reducing maintenance costs while delivering reliable performance.
Small beekeepers benefit from the Rotating Disc Type model. It is cost-effective, saves labour, and is easy to install, making it perfect for small workshops.
It offers higher capacity, precise filling, and stable operation, ideal for scaling up production.
| Weight | 30 kg |
|---|
